材料：UL尼龍6/6，防火等級94V-2，夾緊圈為耐由橡膠材質。
特點：
1、夾緊圈經特殊設計，拉力強，對電機不造成損傷。
2、不須將固定頭解體，電纜可直接穿入上緊即可，省時方便。
用途：一般機械控制箱、配電盤、機器、電器等電纜固定用。
Material: made from UL Nylon 66, 94V-2 and tight ring from rubber.
Feature:
1. Special designation, good strengthsile and none damage to electrical machine.
2. Not need to dismetgrate the fix terminal, cable can be inserted through directly then tighten easy and save time.
Application: Used for machinery control box, distribution plate, machine and electrical, etc.
|

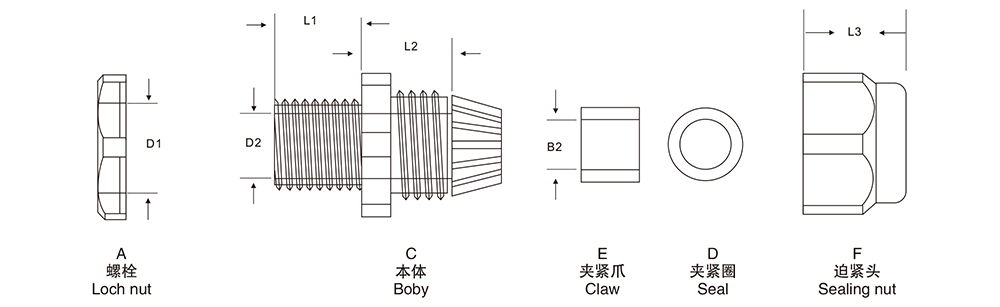

型號 ITEM.NO. |
D1 | D2 | L1 | L2 | L3 | B1 |
范圍 Cable range |
|---|---|---|---|---|---|---|---|
| WFPG-07 | 12.0 | 8.1 | 10.4 | 14.5 | 14.0 | 6.4 | 3.5-6 |
| WFPG-09 | 16.0 | 11.0 | 9.9 | 15.8 | 16.0 | 8.6 | 4-8 |
| WFPG-11 | 17.9 | 13.0 | 10.6 | 15.5 | 18.0 | 10.7 | 5-10 |
| WFPG-13.5 | 20.2 | 15.0 | 10.0 | 17.8 | 19.0 | 13.3 | 6-12 |
| WFPG-16 | 22.0 | 17.0 | 11.2 | 18.5 | 19.0 | 14.3 | 10-14 |
| WFPG-19 | 24.0 | 19.0 | 11.4 | 18.6 | 21.0 | 15.5 | 12-15 |
| WFPG-21 | 26.9 | 21.8 | 11.6 | 18.7 | 22.0 | 16.7 | 13-18 |
| WFPG-24 | 29.8 | 24.0 | 12.1 | 28.3 | 24.0 | 19.2 | 15-22 |
| WFPG-29 | 36.0 | 28.0 | 12.4 | 22.6 | 24.0 | 24.8 | 18-25 |
| WFPG-36 | 45.7 | 39.0 | 12.6 | 25.1 | 27.0 | 30.7 | 22-32 |
| WFPG-42 | 54.0 | 46.0 | 17.3 | 25.9 | 29.0 | 35.6 | 30-38 |
| WFPG-48 | 59.0 | 51.0 | 20.9 | 28.1 | 30.0 | 41.4 | 34-44 |
| WFPG-63 | 71.0 | 63.5 | 27.5 | 31.5 | 43.5 | 55 | 42-54 |
