材質：采用UL認可之尼龍66料制成，防炎等級94V-2。背附進口雙面海棉膠，絕緣良好、耐久性、不易老化。
使用方法：將定位片海棉膠撕開，貼于機板固定，再用扎帶捆扎電線。
用途：省時、簡便、供面板不可以鉆孔時使用。
Material: Nylon 66, 94-2,certificated by Ul, the back attached sponge glue imported.
Usage: Peel the sponge glue and stick on the wall then, bundle the wire with cable ties.
Application: For bundling wires and other things save time and convenient, used for the wall which can't be made a hole in.
|

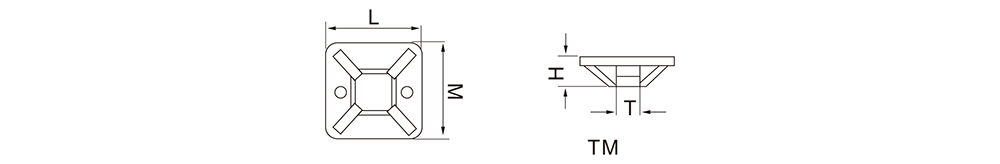

型號 ITEM.NO. |
長×寬 L×W |
高(H) (mm) |
T (mm) |
螺絲釘 SCREW HOLE(mm) |
|---|---|---|---|---|
| WFTM-20 | 20×20 | 6.1 | 6.0 | 2.4 |
| WFTM-25 | 25×25 | 7.5 | 7.0 | 2.5 |
| WFTM-30 | 30×30 | 7.5 | 7.8 | 3.2 |
| WFTM-40 | 40×40 | 8.5 | 11.5 | 4.5 |
